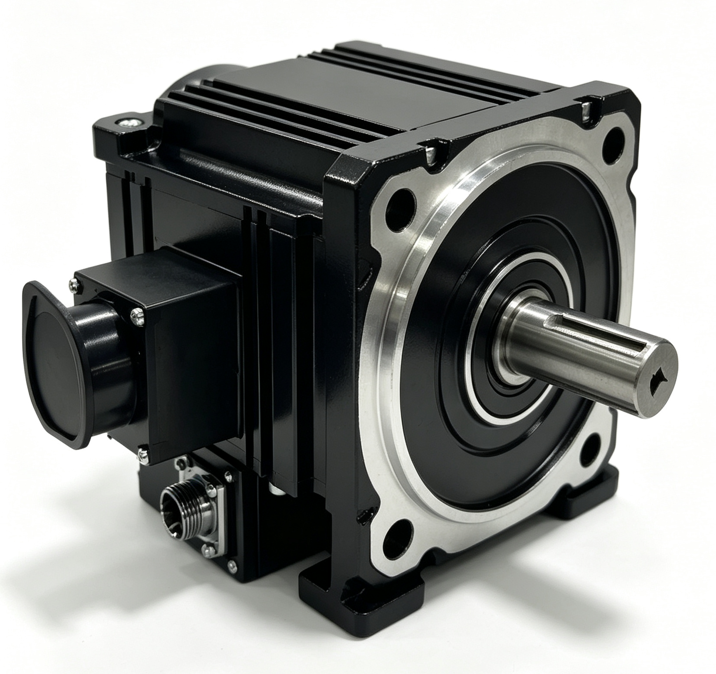

1500W Servo Motor
130 frame, rated 4.8 N·m, mass 4.80 kg.
- 1500WPower
- 4.8 N·mRated torque
- 130Frame
- 4.80 kgMass
Performance
| Item | Value |
|---|---|
| Supply voltage | 220 V |
| Rated power | 1500 W |
| Rated torque | 4.8 N·m |
| Peak torque | 14.4 N·m |
| Rated current | 6 A |
| Rotor inertia | 7.2×10⁻⁴ kg·m² |
| Rated / maximum speed | 3000 / 4000 r/min |
| Encoder | 17 bit |
| Mass | 4.80 kg |
Mounting
| Item | Value |
|---|---|
| Frame | 130 |
| Body length L | 137.7 mm |
| Brake length L | 171.1 mm |
| Flange | 130 (outside diameter Ø145) |
| Pilot | Ø110h7 |
| Pilot height | 6 mm |
| Mounting holes | 4-Ø9 |
| Shaft diameter × extension | Ø22 × 55±1 mm |
| Key width × length | 6 × 24.5 mm |
| Shaft-end thread | M6×20 |
Versions
| Version | Encoder | Brake | Body length mm |
|---|---|---|---|
| Standard | Incremental | No | 137.7 |
| Absolute | 17-bit absolute | No | 137.7 |
| Brake | Incremental | Yes | 171.1 |
| Brake + absolute | 17-bit absolute | Yes | 171.1 |
Brake wiring: Integrated servo drive.
Engineering Documents
For more detailed parameters and drawings, contact us.
