NEMA34 Stepper Motor
Stepper motor paired with MSP86 in the configurator. Check the outline, then confirm the nameplate and the mounting holes.
- NEMA3486 Frame
- Two-phase 1.8°Stepper
- Open / closed loopOptional
- MSP86Matched code

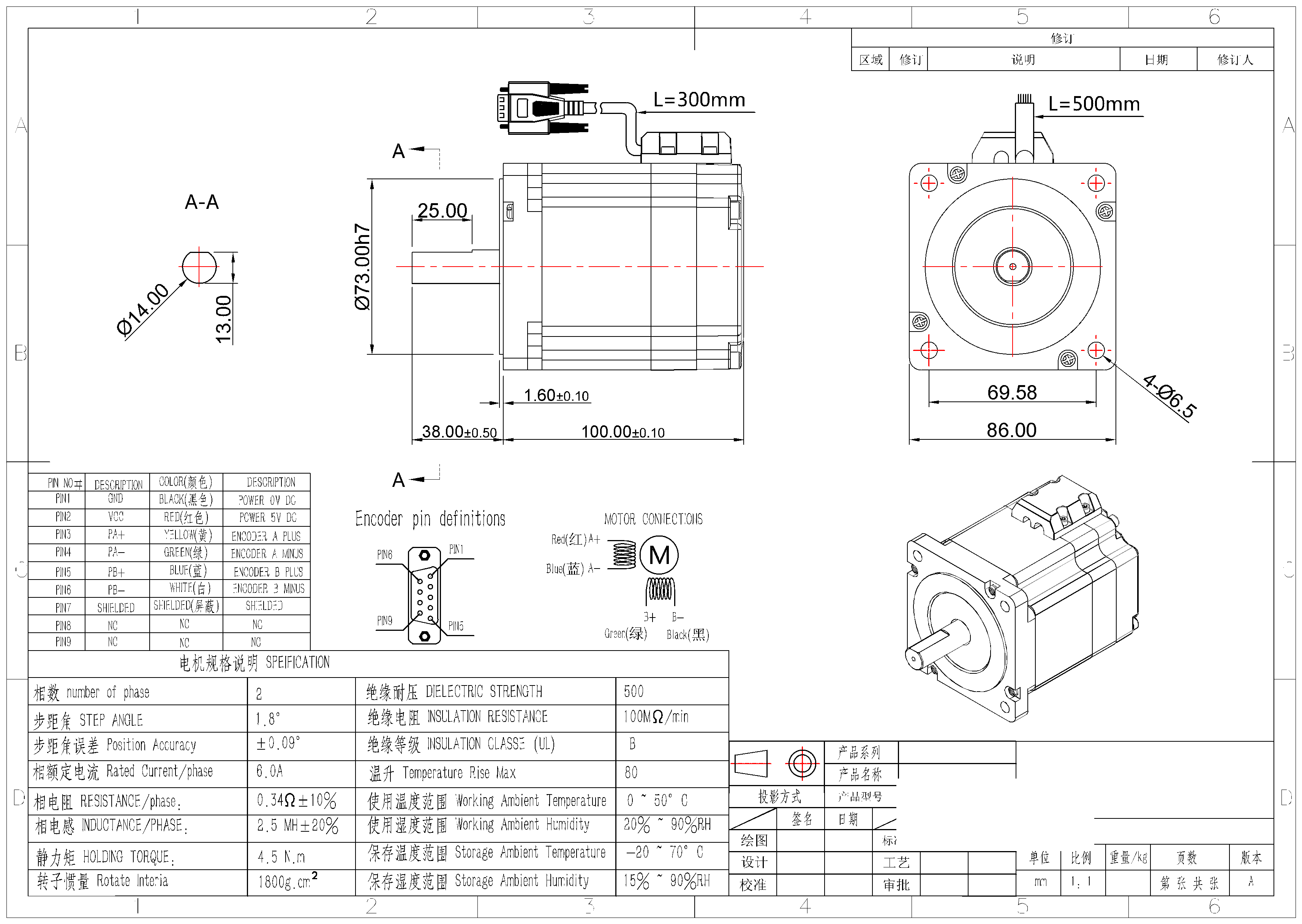

Outline and dimensions
Body length, shaft end, and encoder versions of the same MSP size can differ. Before you freeze the design, check the selected version against the final configurator code.
Rating Range
| Item | Value |
|---|---|
| NEMA | NEMA34 |
| Torque range | 4.5–12 N·m |
| Typical use | Heavy load, multi-station, leadscrew drive |
| Supply | DC 24–48V |
| Default cable | 1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m) |
Nameplate data
| Version | Body length mm | Rated current A | Phase resistance Ω | Phase inductance mH | Holding torque N·m | Rotor inertia g·cm² | Shaft diameter |
|---|---|---|---|---|---|---|---|
| Standard | 100.0 | 6.0 | 0.34 | 2.5 | 4.5 | 1800 | Ø14 |
Mounting Dimensions
| Mounting Dimensions | MSP86 |
|---|---|
| Front pilot diameter | Ø73.00h7 |
| Mounting holes | 4-Ø6.5 |
| Mounting-hole pitch | 69.58 square |
| Shaft extension | 38.0±0.5 |
Phase resistance tolerance ±10%, phase inductance ±20%. The closed-loop version adds an encoder, and body length includes the encoder cover. Shaft diameter h6 is a tolerance zone, not a size.
Engineering Documents
For more detailed parameters and drawings, contact us.
Matched drive
This frame pairs with MSP86. Supply, wiring, and software entry are on the drive page. Open loop, closed loop, brake, and gearbox are selected in the configurator.
