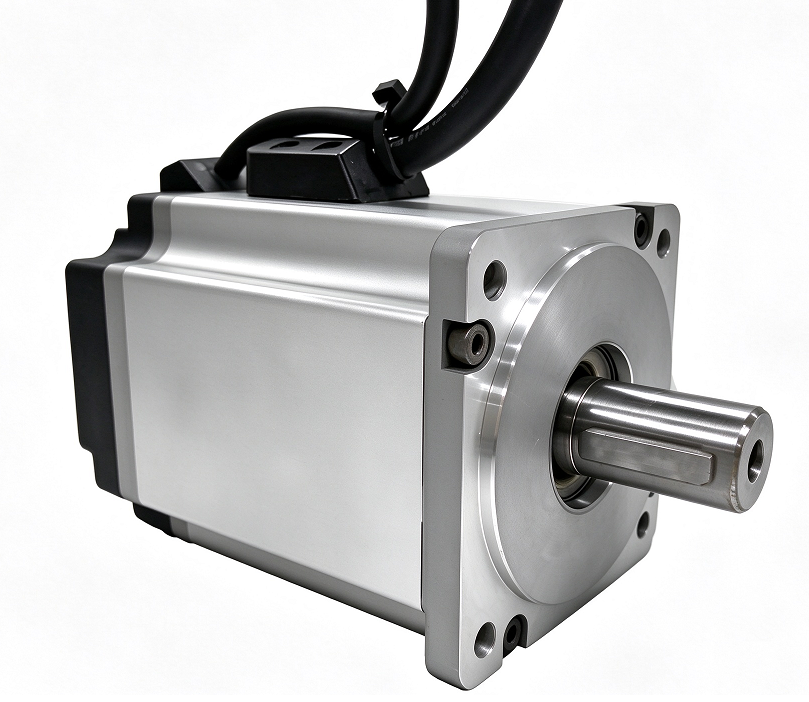

200W Servo Motor
60 frame, rated 0.64 N·m, mass 1.00 kg.
- 200WPower
- 0.64 N·mRated torque
- 60Frame
- 1.00 kgMass
Performance
| Item | Value |
|---|---|
| Supply voltage | 220 V |
| Rated power | 200 W |
| Rated torque | 0.64 N·m |
| Peak torque | 1.9 N·m |
| Rated current | 1.1 A |
| Rotor inertia | 0.3×10⁻⁴ kg·m² |
| Rated / maximum speed | 3000 / 6000 r/min |
| Encoder | 17 bit |
| Mass | 1.00 kg |
Mounting
| Item | Value |
|---|---|
| Frame | 60 |
| Body length L | 81 mm |
| Brake length L | 116 mm |
| Flange | 60 |
| Pilot | Ø50 |
| Pilot height | 3 mm |
| PCD / mounting holes | Ø70 · 4-Ø5.5 |
| Shaft diameter × extension | Ø14 × 30±0.5 mm |
| Key width × length | 5 × 25 mm |
| Shaft-end thread | M5×12 |
Versions
| Version | Encoder | Brake | Body length mm |
|---|---|---|---|
| Standard | Incremental | No | 81 |
| Absolute | 17-bit absolute | No | 81 |
| Brake | Incremental | Yes | 116 |
| Brake + absolute | 17-bit absolute | Yes | 116 |
Brake wiring: Integrated servo drive.
Engineering Documents
For more detailed parameters and drawings, contact us.
