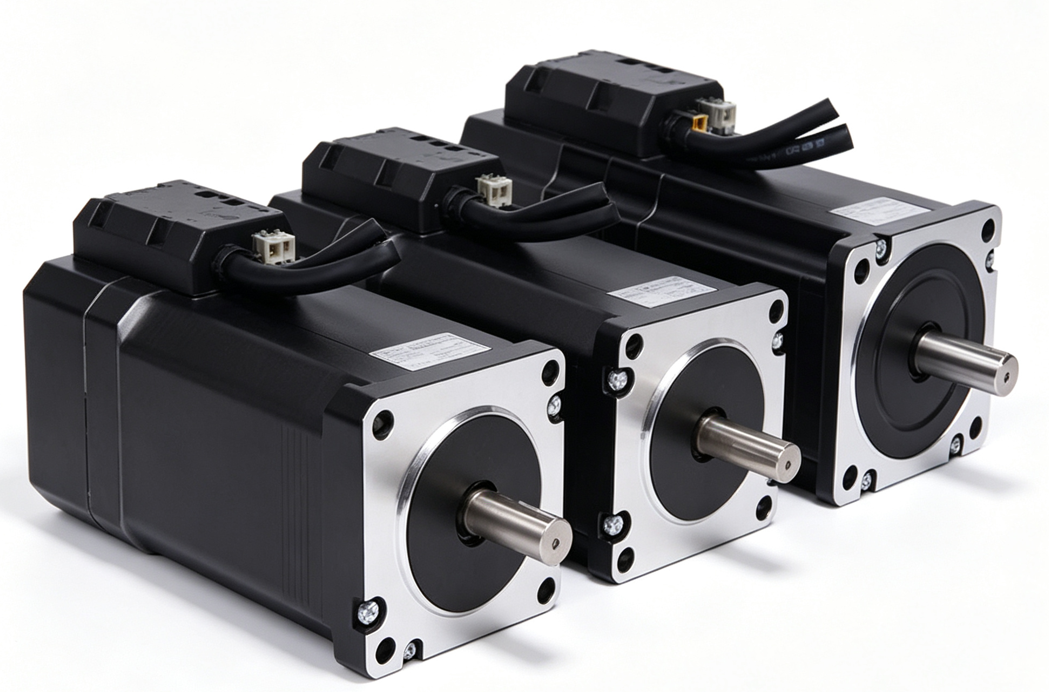

NEMA11 Stepper Motor
28-frame two-phase hybrid stepper motor for the MSP28 integrated drive. Open loop, closed loop, brake, and gearbox are selected in the configurator.
- NEMA1128 Frame
- Two-phase 1.8°Stepper
- Open / closed loopOptional
- MSP28Matched code
Rating Range
| Item | Value |
|---|---|
| NEMA | NEMA11 |
| Torque range | 0.06–0.12 N·m |
| Typical use | Smaller frame |
| Supply | DC 24–48V |
| Default cable | 1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m) |
Mounting check
This frame is for light-duty positioning.
Wiring and supply: See Integrated stepper drive supported-motor table.
Engineering Documents
For more detailed parameters and drawings, contact us.
Matched drive
This frame pairs with MSP28. Supply, wiring, and software entry are on the drive page. Open loop, closed loop, brake, and gearbox are selected in the configurator.
