750W Servo Motor
80 frame, rated 2.39 N·m, mass 2.20 kg.
- 750WPower
- 2.39 N·mRated torque
- 80Frame
- 2.20 kgMass
Performance
| Item | Value |
|---|---|
| Supply voltage | 220 V |
| Rated power | 750 W |
| Rated torque | 2.39 N·m |
| Peak torque | 7.1 N·m |
| Rated current | 4.5 A |
| Rotor inertia | 1.5×10⁻⁴ kg·m² |
| Rated / maximum speed | 3000 / 6000 r/min |
| Encoder | 17 bit |
| Mass | 2.20 kg |
Mounting
| Item | Value |
|---|---|
| Frame | 80 |
| Body length L | 101 mm |
| Brake length L | 139.9 mm |
| Flange | 80 |
| Pilot | Ø70h7 |
| Pilot height | 3.00±0.10 mm |
| PCD / mounting holes | Ø90 · 4-Ø6.8 |
| Shaft diameter × extension | Ø19h6 × 35±0.5 mm |
| Key width × length | 6 × 21.5 mm |
| Shaft-end thread | M6×12 |
Versions
| Version | Encoder | Brake | Body length mm |
|---|---|---|---|
| Standard | Incremental | No | 101 |
| Absolute | 17-bit absolute | No | 101 |

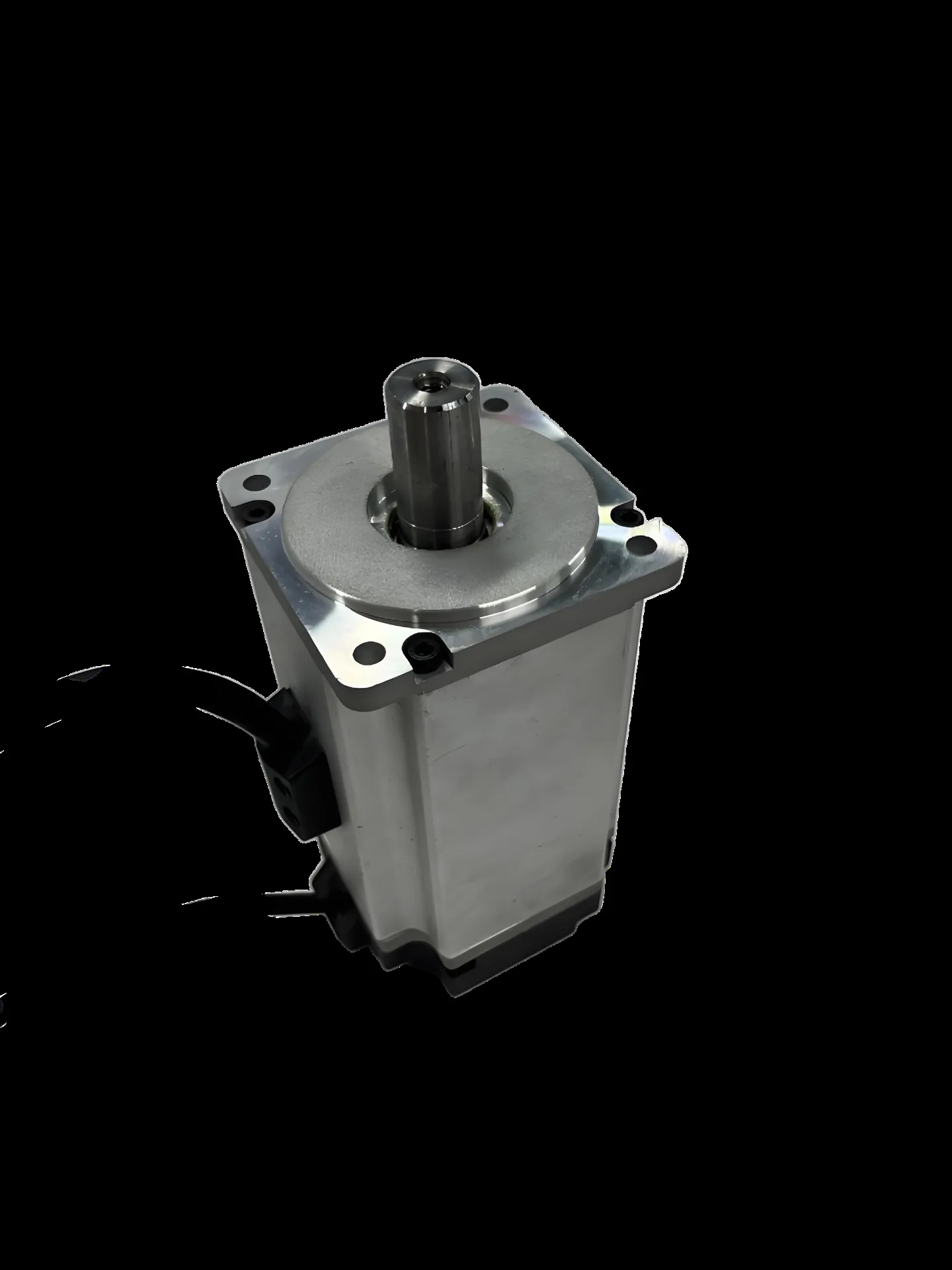

| Brake | Incremental | Yes | 139.9 |
| Brake + absolute | 17-bit absolute | Yes | 139.9 |
Brake wiring: Integrated servo drive.
Engineering Documents
For more detailed parameters and drawings, contact us.
